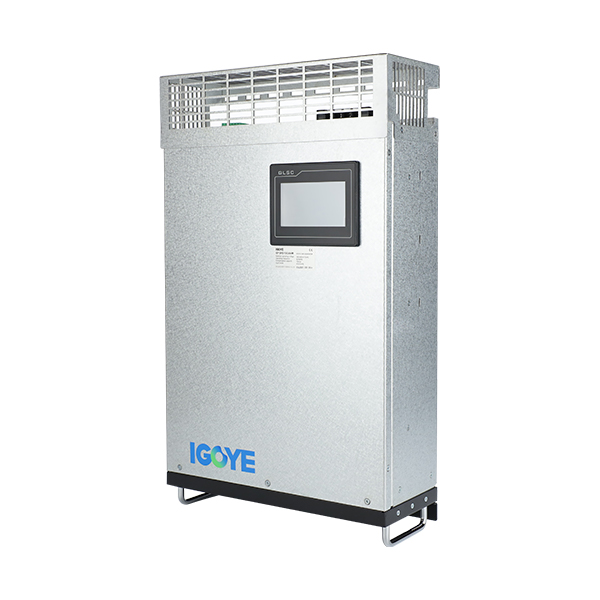

380v phab ntsa-mounted nquag harmonic lim
Geya muab cov 380v phab ntsa-mounted nquag ua hauj lwm lim, tsim thiab tsim hauv peb Tuam Tshoj Hoobkas nrog cov thev naus laus zis siab tshaj. Kev ua haujlwm siab, yooj yim rau nruab, thiab txhim khu kev qha rau ntau yam kev siv. Tiv tauj peb tam sim no kom paub cov ntsiab lus ntxiv thiab kom tau txais qhov zoo tshaj plaws!
Lub 380v ntsa-mounted nquag harmonic lim (AHF) muaj cov tshuaj uas muaj zog rau hauv peb-theem plaub-hlau (33W) 380V fais fab tshuab. Ua haujlwm siab tshaj DSP + cpld digital tswj thiab peb-theem kev nkag siab, qhov chaw txuag hluav taws xob muab cov nyiaj tsis zoo. Cov yam ntxwv tseem ceeb suav nrog ntau hom kev lim hiam (2nd mus rau 50th high Muaj nyob rau hauv ntau yam kev ntsuas tam sim no (25a rau 150A), lub phab ntsa thib 3-mounted AHF kom zoo nkauj nyob ruaj khov thiab txuag hluav taws xob ib puag ncig.
Cov Qauv Qhia Ntawv:
| Gy | AHF | 0.4 | 50A | / | 4L | W |
| Tus Code | Nquag harmonic lim | Voltage theem 0.4: 380V ± 20% |
Kev ntsuas kev muaj peev xwm (KvAR) 25/50/75 / 100 / 150A | 3L: Peb-theem peb-xaim 4L: Peb-theem plaub-xaim |
W: Phab ntsa-mounted |
Nta:
● Siv DSP
● Txais yuav cov qauv tsim qauv, uas pab txhawb kev sib txuas ntawm ntau yam kev sib txuas, yuav siv sijhawm me me thiab yog yooj yim tswj.
● Cov qauv tsim qauv ntawm cov huab cua ywj pheej thiab cov ntaub ntawv ywj siab ua kom muaj kev lag luam ruaj khov ntawm cov khoom siv.
● Nws tuaj yeem lim cov kev sib haum xeeb ntau qhov kev sib haum xeeb, txij li 2 txog 50 qhov teeb meem, thiab daws qhov teeb meem ntawm peb-theem tsis muaj peb-theem unbalance tib lub sijhawm.
Tus nqi harmonic harmonic muaj siab. Yog tias lub peev xwm tso cai, cov harmonic txheej txheej tam sim no siv tau li siab li 95%. Teeb 100% txwv cov zis tam sim no kom ntseeg tau tias ntev kev ua haujlwm ntev ntawm cov khoom siv.
Cov Ntawv Thov:
380v phab ntsa-mounted nquag ua hauj lwm harters yog qhov tseem ceeb rau kev tswj cov khoom siv muaj zog hauv ntau yam:
● Siv Automation:Kev tiv thaiv cov khoom siv tshuab rhiab thiab ua kom muaj kev txhim khu kev qha ntawm cov hloov pauv zaus (VFDs), Robotics, thiab lwm yam tseem ceeb.
● Raug nroj tsuag:Txhim kho lub zog zoo thiab txo cov nqi zog los ntawm kev txo qis kev cuam tshuam.
● Cov Ntaub Ntawv Chaw:Muab lub hwj chim huv rau qhov tseem ceeb nws cov cuab yeej siv hluav taws xob thiab kev tiv thaiv cov ntaub ntawv poob vim yog muaj hwj chim hloov pauv.
● Roj thiab roj Kev Lag Luam:Ua kom ntseeg tau lub luag haujlwm txhim khu kev qha ntawm cov twj, compressors, thiab lwm yam khoom tseem ceeb nyob rau hauv cov chaw hnyav.
● Txuas txuas dua hluav taws xob:Kev sib xyaw ua ke txuas ntxiv rau cov kab sib luag mus rau hauv kab sib chaws thaum tswj lub zog zoo thiab ruaj khov.
380v phab ntsa-mounted nquag ua hauj lwm harters harters muab lub zog txhim khu kev qha thiab siv tau zoo rau kev ua haujlwm zoo hauv peb-theem 380V cov ntawv thov.
Kev Ntsuas Cov Qauv:
| 220V Series | 380V Series | 500V Series 500V | 690V Series | ||
| Qho siab | <2000m, saum 2000m, derate raws li GB / T3859.2 | ||||
| Thaj kub cua sov | -20 ~ + 50 ℃ | ||||
| Tus txheeb ze cov av noo | I≤90%, tsis muaj hws rau saum npoo thaum lub hlis tsawg kawg yog 25 ℃ | ||||
| Kev Nyab Xeeb Qib | Qib III hauv qab no | ||||
| Kev Lag Luam Hluav Taws Xob | AC220V ± 20% | AC380V က ac 20 20 20 20 20 20% | AC500V ±00V ± 20% | AC690V ± 20% | |
| Ua haujlwm zaus | 50Hz ± 5% | ||||
| Nyiaj Them Tam Sim No | 25a | 25/505/100 / 150A | 100A | 100A | |
| Daim phiaj qauv | L / n | 35W / 3P4W | 35W / 3P4W | 35W / 3P4W | |
| Cov naj npawb ntawm cov chav sib txuas nrog hauv parallel | Roj teeb | ||||
| Zuag qhia tag nrho cov tshuab efficiency | ≥97% | ||||
| Daim phiaj qauv | 32KHZ | 16kHz | 12.8KHz | 12.8KHz | |
| Kev Them Nyiaj Ntau | 2 ~ 50times, tus nqi them ib zaug yog kho tau | ||||
| Kev Xaiv Ua Haujlwm | Refiorive zog | Reflective zog, reactive fais + asymmetry | |||
| Reforeive them nyiaj tus nqi | ≥9% | > 92% | |||
| Nruab nrab lim lub peev xwm | Nruab nrab kab lim cov peev xwm yog 3 zaug uas ntawm theem lim muaj peev xwm | ||||
| Sijhawm Sijhawm Teb | <10ms | 150 | 150 | 150 | |
| Suab nrov | ≤60DB | ≤60DB | I≤65DB | I≤65DB | |
| Txoj Kev Tswj Xyuas | 2-txoj kev RS485 interface (txhawb nqa GPRS / Wifi) | ||||
| Kev povhwm | Tshaj dhau, software / Khoom siv overvurrent, daim phiaj overvoltage thiab undervoltage, lub zog tsis ua hauj lwm, kev tiv thaiv, zaus kev tawm tsam kev tiv thaiv, thiab lwm yam. | Overload, software / kho vajtse overvurrent, grid overvoltage thiab undervoltage tsis txaus, kev ua tsis tiav, zaus kev tiv thaiv kab ke, thiab lwm yam. | |||
| Txoj kev teeb tsa | Khib / phab ntsa-mounted | Khib | |||
| Tuaj Tuaj Kab | Rov qab los (rack hom), sab saud (phab ntsa-mounted) | Rov qab cov kab | |||
| Kev Tiv Thaiv Qib | Liphaus20 | ||||

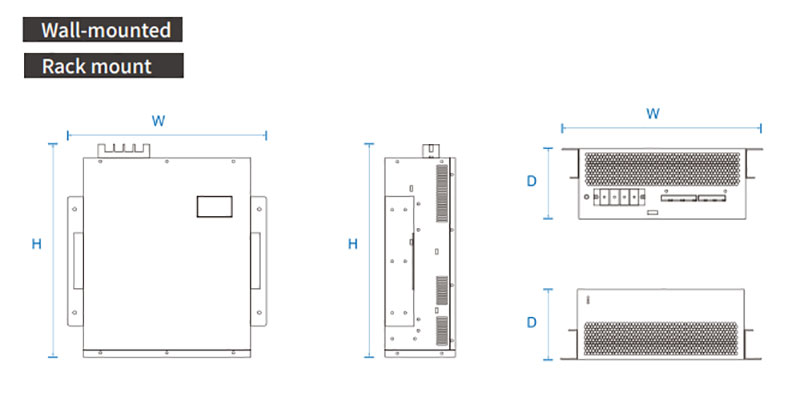

Qauv & Specification:
| Qauv | ||||
|---|---|---|---|---|
| Tus Qauv Qauv | Rated tam sim no (a) | System Voltage (V) | Qhov loj me (D * W * H) | Cua txias txoj kev |
| GY APF-0.22-25A / 2L-R / W | 25 | 220 | 220 * 330 * 160 hli | Yuam Kev Cua Txias |
| Gy apf-0.4-25A / 4L-R / W | 25 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy apf-0.4-5050 / 4L-r / w | 50 | 380 ± 20% | 460 * 490 * 89mm | |
| GY APF-0.4-75A / 4L-R / W | 75 | 380 ± 20% | 500 * 510 * 190 hli | |
| GY APF-0.4-100A / 4L-R / W | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.4-150a / 4L-r / w | 150 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.5-100a / 4L-R / W | 100 | 500 ± 20% | 495 * 675 * 275 hli | |
| Gy apf-0.69-100a / 4L-R / W | 100 | 690 ± 20% | 495 * 675 * 275 hli | |
