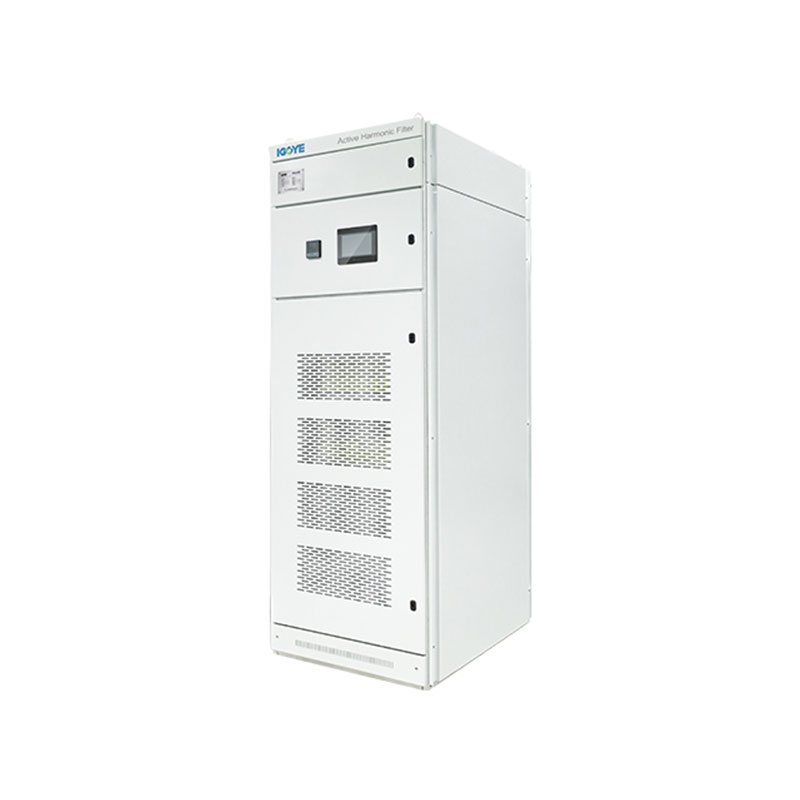

220V Txee-Hom Hom nquag lim lim
Geya yog tus kws tshaj lij kev ua haujlwm ntawm kev ua haujlwm ntawm lub teb chaws Suav teb Turnor. Qhov 220V txee-hom nquag harmonic lim muab cov kev haub harmonic rau ib leeg & theem (4-hlau) 220V tshuab. Nws siv digital tswj, muaj lub txee modular txee tsim & them nyiaj rau 50 harmonic, hais tsis ncaj. Qhov zoo tshaj plaws rau cov ntaub ntawv cov chaw, kev kho mob & teeb tsa kev lag luam.

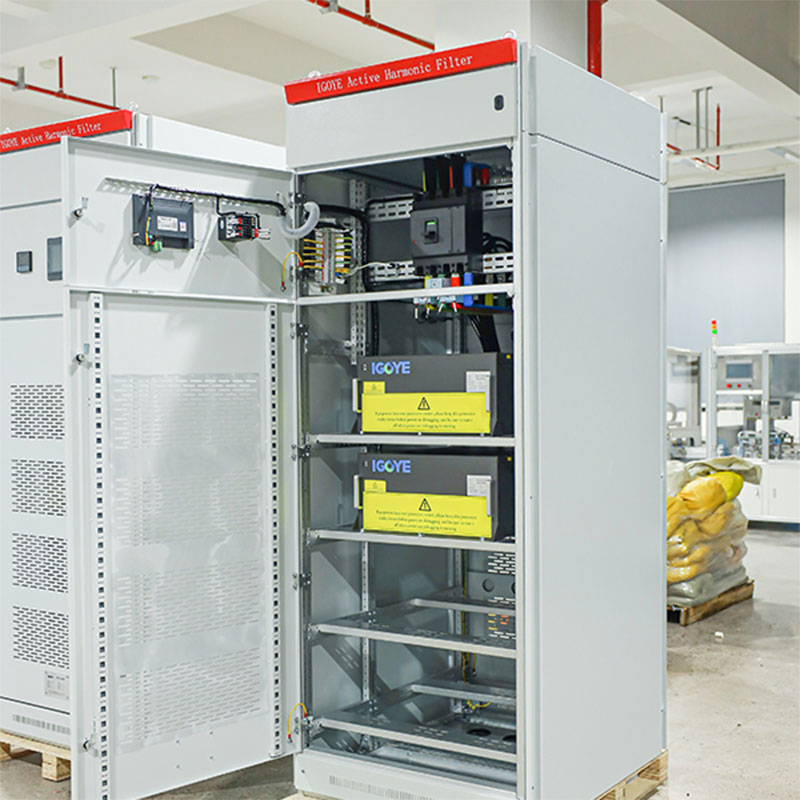

Lub 220V txee-hom nquag siv lub lim haronic (APF) muab cov kev ntsuas zoo rau kev ua haujlwm rau ib leeg-theem thiab peb-theem plaub-hlau tshuab. Ua haujlwm DSP + CPLD digital tswj thiab peb-qib kev txiav txim siab rau kev sib raug zoo txog 50 qhov kev txiav txim siab, thaum tseem nyob nrog peb-theem tsis txaus. Nws cov qauv tsim qauv ua rau cov khoom muaj peev xwm ntawm parallel. Ntawm nyob rau hauv ib lub txee zoo nrog cov huab cua nyob ywj pheej, 220V Txee-hom kev lim neeg harmonic harmonus tau lees tias kev ua haujlwm tau zoo. Muaj nyob rau hauv ntau yam kev ntsuas tam sim no, qhov APP no muaj lub zog ua tau zoo. Tus qauv 220V tshwj xeeb yog tsim rau 220V, ua kom muaj kev pom zoo hauv qhov kev ua tau zoo ntawm voltage no.
Cov Qauv Qhia Ntawv:
| Gy | AHF | 0.22 | 50A | / | 4L | C |
| Tus Code | Nquag harmonic lim | Voltage theem 0.22: 220V |
Kev ntsuas kev muaj peev xwm (KvAR) 25/50/75 / 100 / 150A | 2L: ib leeg-theem 3l: peb-theem peb-xaim 4L: Peb-theem plaub-xaim |
C: Txee |
Nta:
● Siv DSP
● Txais yuav cov qauv tsim qauv, uas pab txhawb kev sib txuas ntawm ntau yam kev sib txuas, yuav siv sijhawm me me thiab yog yooj yim tswj.
● Cov qauv tsim qauv ntawm cov huab cua ywj pheej thiab cov ntaub ntawv ywj siab ua kom muaj kev lag luam ruaj khov ntawm cov khoom siv.
● Nws tuaj yeem lim cov kev sib haum xeeb ntau qhov kev sib haum xeeb, txij li 2 txog 50 qhov teeb meem, thiab daws qhov teeb meem ntawm peb-theem tsis muaj peb-theem unbalance tib lub sijhawm.
Tus nqi harmonic harmonic muaj siab. Yog tias lub peev xwm tso cai, cov harmonic txheej txheej tam sim no siv tau li siab li 95%. Teeb 100% txwv cov zis tam sim no kom ntseeg tau tias ntev kev ua haujlwm ntev ntawm cov khoom siv.
Cov Ntawv Thov:
220V Txee-Hom Hom Harmonic lim tau tsim nyog rau ntau cov kev siv ntawm cov ntawv thov zoo ntawm 220V:
● Me me rau nruab nrab cov chaw nruab nrab ntawm cov ntaub ntawv:Tiv thaiv cov khoom siv rhiab thiab tswj kav tau los ntawm kev txo qis harnonic distortion.
● Cov chaw kho mob:Ua kom ntseeg tau lub luag haujlwm txhim khu kev qha ntawm cov cuab yeej kho mob tseem ceeb ntawm 220V, txo qhov kev pheej hmoo ntawm kev cuam tshuam.
● Lub Teeb Muaj Cov Ntawv Thov:Txhim kho cov khoom zoo rau cov khoom siv rhiab thiab cov txheej txheem ua haujlwm ntawm 220V.
● Lub tsev lag luam:Txo Harmonic diav tsim los ntawm 220V Thauj Khoom, xws li Teeb Pom Kev thiab Chaw Ua Haujlwm.
220V Txee-Hom Hom Harters Harters Ua kom muaj kev daws teeb meem rau kev txhim kho lub zog zoo hauv 220V, txhawb kev ua haujlwm tau zoo thiab txhim khu kev qha ntawm cov khoom siv rhiab.
Kev Ntsuas Cov Qauv:
| 220V Series | 380V Series | 500V Series 500V | 690V Series | ||
| Qho siab | <2000m, saum 2000m, derate raws li GB / T3859.2 | ||||
| Thaj kub cua sov | -20 ~ + 50 ℃ | ||||
| Tus txheeb ze cov av noo | I≤90%, tsis muaj hws rau saum npoo thaum lub hlis tsawg kawg yog 25 ℃ | ||||
| Kev Nyab Xeeb Qib | Qib III hauv qab no | ||||
| Kev Lag Luam Hluav Taws Xob | AC220V ± 20% | AC380V က ac 20 20 20 20 20 20% | AC500V ±00V ± 20% | AC690V ± 20% | |
| Ua haujlwm zaus | 50Hz ± 5% | ||||
| Nyiaj Them Tam Sim No | 25a | 25/505/100 / 150A | 100A | 100A | |
| Daim phiaj qauv | L / n | 35W / 3P4W | 35W / 3P4W | 35W / 3P4W | |
| Cov naj npawb ntawm cov koog Txuas nyob rau hauv parallel |
Roj teeb | ||||
| Zuag qhia tag nrho cov tshuab efficiency | ≥97% | ||||
| Daim phiaj qauv | 32KHZ | 16kHz | 12.8KHz | 12.8KHz | |
| Kev Them Nyiaj Ntau | 2 ~ 50times, tus nqi them ib zaug yog kho tau | ||||
| Kev Xaiv Ua Haujlwm | Refiorive zog | Reflective zog, reactive fais + asymmetry | |||
| Refiorive zog Them Nqi |
≥9% | > 92% | |||
| Nruab nrab lim kev txawj |
Nruab nrab kab lim cov peev xwm yog 3 zaug uas ntawm theem lim muaj peev xwm | ||||
| Sijhawm Sijhawm Teb | <10ms | 150 | 150 | 150 | |
| Suab nrov | ≤60DB | ≤60DB | I≤65DB | I≤65DB | |
| Txoj Kev Tswj Xyuas | 2-txoj kev RS485 interface (txhawb nqa GPRS / Wifi) | ||||
| Kev povhwm | Tshaj dhau, software / Khoom siv overvurrent, daim phiaj overvoltage thiab undervoltage, lub zog tsis ua hauj lwm, kev tiv thaiv, zaus kev tawm tsam kev tiv thaiv, thiab lwm yam. | Overload, software / kho vajtse overvurrent, grid overvoltage thiab undervoltage tsis txaus, kev ua tsis tiav, zaus kev tiv thaiv kab ke, thiab lwm yam. | |||
| Txoj kev teeb tsa | Khib / phab ntsa-mounted | Khib | |||
| Tuaj Tuaj Kab | Rov qab los (rack hom), sab saud (phab ntsa-mounted) | Rov qab cov kab | |||
| Kev Tiv Thaiv Qib | Liphaus20 | ||||
Qauv & Specification:
| Txee Ntaus Qauv | ||||
|---|---|---|---|---|
| Tus Qauv Qauv | Kev Them Nyiaj (Kvar) | System Voltage (V) | Qhov loj me (D * W * H) | Cua txias txoj kev |
| Gy apf-0.4-100a / 4L-C | 100 | 380 ± 20% | 800 * 1000 * 2200mm | Yuam Kev Cua Txias |
| GY APF-0.4-150A / 4L-C | 150 | 380 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.4-200A / 4L-C | 200 | 380 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.4-250A / 4L-C | 250 | 380 ± 20% | 800 * 1000 * 2200mm | |
| GY APF-0.4-300A / 4L-C | 300 | 380 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.4-400a / 4L-C | 400 | 380 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.5-300a / 4L-C | 300 | 500 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.00a / 4L-C | 300 | 690 ± 20% | 800 * 1000 * 2200mm | |
