220V Khib Mount Active Harmonic Lim
Tau txais cov ntawv customized ntawm 220V khib Mount AV Ua Haujlwm Harmonic Lim, tsim rau kev ua haujlwm siab thiab ruaj khov. Geya muab cov kev daws teeb meem customized kom tau raws li koj cov kev xav tau tshwj xeeb, kom ntseeg tau lub zog zoo tshaj plaws. Raws li kev txhim khu kev qha nkoj Tuam Tshoj, peb lav cov khoom lag luam sab saum toj-tsis sib tw thiab tus nqi sib tw. Tiv tauj peb tam sim no rau cov lus sau ua ke thiab cov ntsiab lus ntxiv!
Lub 220V Khib Mount AV Ua Haujlwm Harmonic Lim (AHF) muaj cov tshuaj muaj zog Rau cov nyom kev haitonic hauv ib-theem thiab peb-theem systemE. Ntiav Advanced DSP + CPLD digital tswj thiab peb-theem topology, qhov no Khib-mounted lim raug them rau kev ua kom zoo nkauj rau lub 50 xaj. Modular tsim ua kom yooj yim installation, tody, thiab txij nkawm. Muaj nyob rau hauv ntau cov kev ntsuas tam sim no (25a rau 150A), 220V AHF zoo txo cov kev ua kom tsis sib haum xeeb, txhim kho lub zog zoo, thiab Txhim kho cov txheej txheem ruaj khov. Yuam kev cua txias lav kev ua haujlwm tau lees paub. Qhov no 220V khib Mount Cov lim HARITY harmonic lim muab cov kev sib txuas thiab txuag daws rau teeb meem harmonic.
Cov Qauv Qhia Ntawv:
| Gy | AHF | 0.22 | 50A | / | 4L | R |
| Tus Code | Nquag harmonic lim | Voltage theem 0.22: 220V |
Kev ntsuas kev muaj peev xwm (KvAR) 25/50/75 / 100 / 150A | 2L: ib leeg-theem 3l: peb-theem peb-xaim 4L: Peb-theem plaub-xaim |
R: Khib Mount |
Nta:
● Siv DSP + CPLD tag nrho cov kev tswj digital tswj hwm, peb-theem toolology thev naus laus zis,
Advanced Harmonic pom algorithm thiab PWM Control tswj lub tswv yim kom ua tiav
raug pab them tau ntawm Harmonic tam sim no.
● Txais yuav cov qauv tsim qauv, uas pab txhawb kev sib txuas ntawm kev sib txuas ntawm ntau yam
Modules, yuav siv sij hawm me me thiab yog yooj yim tswj.
● Cov qauv tsim qauv ntawm cov huab cua ywj pheej thiab cov chaw muag khoom ywj siab
ua kom muaj kev ua haujlwm ruaj khov ntawm cov khoom siv.
● Nws tuaj yeem lim kev sib haum xeeb hauv kev sib haum xeeb ntau yam, los ntawm 2 txog 50
Harmonics, thiab daws qhov teeb meem ntawm peb-theem tsis muaj kev sib cav tib lub sijhawm.
Tus nqi harmonic harmonic muaj siab. Yog tias muaj peev xwm tso cai, lub harmonic
Tus nqi lim tam sim no tuaj yeem yog siab li 95%. Teeb 100% lim tawm tam sim no
Cov khoom tawm los xyuas kom muaj kev ua haujlwm ntev ruaj khov ntawm cov khoom siv.
Cov Ntawv Thov:
220V Khib Mount Cov Khoom Siv Ua Haujlwm Harters Harters nrhiav kev thov hauv ntau qhov chaw xav tau meej haum harmonic tswj:
● Cov Ntaub Ntawv Chaw:Kev tiv thaiv cov servers rhiab thiab nws
Cov khoom siv los ntawm kev cuam tshuam zoo-ua rau cuam tshuam.
● Cov chaw kho mob:Ua kom ntseeg tau lub hwj chim tseem ceeb rau qhov tseem ceeb
Cov cuab yeej kho mob thiab tshuab.
● Muaj Chaw:Txhim kho cov kev ua tau zoo thiab
kev ua neej ntawm cov khoom siv hluav taws xob hluav taws xob.
● Lub tsev lag luam:Tswj lub zog zoo thiab
txo cov nqi zog.
220V Khib Mount AV Ua Haujlwm Harters Harvies Lilters muab cov txiaj ntsig zoo Mitigation rau ntau cov khoom siv rhiab thiab cov tshuab tseem ceeb.
Kev Ntsuas Cov Qauv:
| 220V Series | 380V Series | 500V Series 500V | 690V Series | ||
| Qho siab | <2000m, saum 2000m, derate raws li GB / T3859.2 | ||||
| Thaj kub cua sov | -20 ~ + 50 ℃ | ||||
| Tus txheeb ze cov av noo | ≤90%, tsis muaj hws rau saum npoo thaum txhua hli Yam tsawg kawg yog 25 ℃ | ||||
| Kev Nyab Xeeb Qib | Qib III hauv qab no | ||||
| Kev Lag Luam Hluav Taws Xob | AC220V ± 20% | AC380V က ac 20 20 20 20 20 20% | AC500V ±00V ± 20% | AC690V ± 20% | |
| Ua haujlwm zaus | 50Hz ± 5% | ||||
| Nyiaj Them Tam Sim No | 25a | 25/505/100 / 150A | 100A | 100A | |
| Daim phiaj qauv | L / n | 35W / 3P4W | 35W / 3P4W | 35W / 3P4W | |
| Cov naj npawb ntawm cov koog Txuas nyob rau hauv parallel |
Roj teeb | ||||
| Zuag qhia tag nrho cov tshuab efficiency | ≥97% | ||||
| Daim phiaj qauv | 32KHZ | 16kHz | 12.8KHz | 12.8KHz | |
| Kev Them Nyiaj Ntau | 2 ~ 50times, tus nqi them ib zaug yog kho tau | ||||
| Kev Xaiv Ua Haujlwm | Refiorive zog | Reflective zog, reactive fais + asymmetry | |||
| Refiorive zog Them Nqi |
≥9% | > 92% | |||
| Nruab nrab lim kev txawj |
Nruab nrab kab lim cov peev xwm yog 3 zaug ntawm theem Lim Muaj Peev Xwm | ||||
| Sijhawm Sijhawm Teb | <10ms | 150 | 150 | 150 | |
| Suab nrov | ≤60DB | ≤60DB | I≤65DB | I≤65DB | |
| Txoj Kev Tswj Xyuas | 2-txoj kev RS485 interface (txhawb nqa GPRS / Wifi) | ||||
| Kev povhwm | Overload, software / kho vajtse overcurrent, sib xyaw kev sib tsoo thiab undervoltage, lub hwj chim tsis ua hauj lwm, kev hawm dhau los, zaus kev tiv thaiv kev tsis zoo, thiab lwm yam. | Overload, software / kho vajtse overcurrent, sib xyaw kev sib tsoo thiab undervoltage, grid voltage tsis txaus, lub zog tsis ua hauj lwm, overtemperature, zaus kev txawv txav, luv Circuit Court kev tiv thaiv, thiab lwm yam. | |||
| Txoj kev teeb tsa | Khib / phab ntsa-mounted | Khib | |||
| Tuaj Tuaj Kab | Rov qab los (rack hom), sab saud (phab ntsa-mounted) | Rov qab cov kab | |||
| Kev Tiv Thaiv Qib | Liphaus20 | ||||
Qauv & Specification:

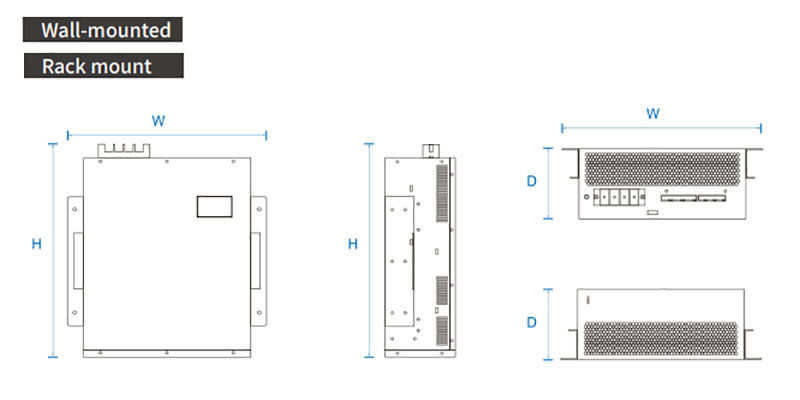

| Qauv | ||||
|---|---|---|---|---|
| Tus Qauv Qauv | Rated tam sim no (a) | System Voltage (V) | Qhov loj me (D * W * H) | Cua txias txoj kev |
| GY APF-0.22-25A / 2L-R / W | 25 | 220 | 220 * 330 * 160 hli | Yuam Kev Cua Txias |
| Gy apf-0.4-25A / 4L-R / W | 25 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy apf-0.4-5050 / 4L-r / w | 50 | 380 ± 20% | 460 * 490 * 89mm | |
| GY APF-0.4-75A / 4L-R / W | 75 | 380 ± 20% | 500 * 510 * 190 hli | |
| GY APF-0.4-100A / 4L-R / W | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.4-150a / 4L-r / w | 150 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.5-100a / 4L-R / W | 100 | 500 ± 20% | 495 * 675 * 275 hli | |
| Gy apf-0.69-100a / 4L-R / W | 100 | 690 ± 20% | 495 * 675 * 275 hli | |
