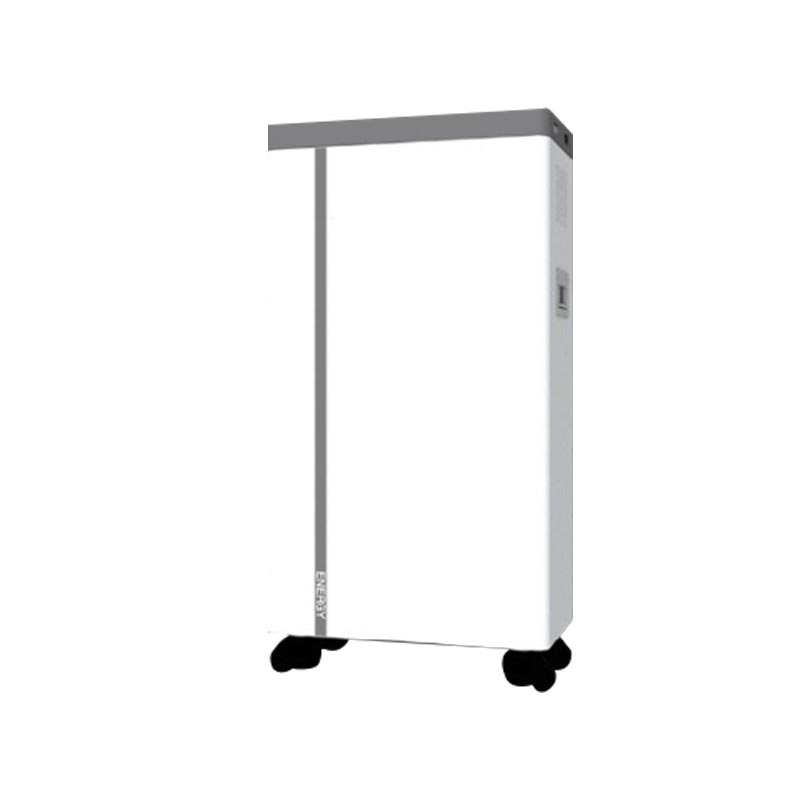

Geya pem teb-sawv nruab nrab tshaj xo-Wll016A1
Lub Geya pem teb-sawv nruab nrab ntawm kab ntawv-WLL016A1 yog ib tiam lwm lub zog cia khoom tsim hauv lub zog Nrog lub loj 16.08KWWASE muaj peev xwm, nws ua kom muaj zog tsis cuam tshuam rau cov tsev neeg, txo kev cia siab rau cov kab sib luag thiab ua kom zoo siv hluav taws xob.
Cov Ntaw Tseem Ceeb Ntawm Geya Pem Teb-Sawv Ruaj Ruaj-Wll016A1
1. Lub Peev Xwm Power Cia - 16.08KWh tag nrho lub zog, 15.27kWh yuav siv lub zog, sib ntsib txoj kev xav tau ntawm tsev neeg txhua hnub.
2. Kev tiv thaiv kev nyab xeeb rau kev nyab xeeb kom muaj kev nyab xeeb nrog overcurrent, overvoltage, luv luv ntawm kev tiv thaiv, thiab kev ua haujlwm kom muaj kev nyab xeeb.
3. Cov neeg txawj tswj kev tswj hwm - txhawb nqa tau / RS485 kev sib txuas lus, ua kom cov kev tswj hwm ntse thiab ua kom tau zoo.
4. Passive System - Tsim kev tsim nrog lub thev naus laus zis ntuj txias, ua rau lub zog txias, ua kom muaj txiaj ntsig zoo, thiab txo cov nqi kho mob.
5. Ntawv pov thawj rau kev nyab xeeb thiab kev ruaj khov - ua raws li CE, Un38.3, MSDs, thiab ROHS qauv kev nyab xeeb.
6. Kev ua haujlwm ntev - 95% qhov tob ntawm paug (dod) ua kom muaj peev xwm siv lub neej siab kawg nkaus.
7.
Kev Qhia Tshwj Xeeb
| Tus qauv | MowerCool-Wll016A1 |
| Tag Nrho Lub Zog | 16.08KWH |
| Siv Zog Siv | 15.27KWHWH |
| Fai fab hov ntau | 44.8-57.6VDC |
| Nominal voltage | 51.2VDC |
| Kev Muaj Peev Xwm | 3144Ah |
| Max. Them nqi voltage | 57.6VDC |
| Nominal rho tawm tam sim no | 157a |
| Nominal them tam sim no | 157a |
| Qho hnyav | 135kg |
| Dimension (hli) (h * l) | 871 * 450 * 250 hli |
| Max.Recommed Dod | 95% |
| Kev khiav hauj lwm mob | Nyob Sab Hauv Tsev |
| Kev khiav hauj lwm them | 0 ~ 55 ° C |
| Kub tawm | 0 ~ 55 ° C |
| Qauv Ambient Kub Ntau | 0 ~ 40 ° C |
| Cia kub ntau yam | > 1 hlis 0 ~ 35 ° C / A≤1 hli ~ 45 ° C |
| Kev vaum | 5% ~ 95% (rh) (tsis muaj hws) |
| Hla kev voltage qeb | ' |
| Cua Txias Hom | Ntuj Txias |
| Rooj plaub | Hlau |
| Kev muab cia | Pem Teb-Sawv |
| IP kev ntsuam xyuas | IP 20 |
| Chav Tiv Thaiv | I |
| Max. Sib Txuas Naj | 6p |
| Kev sib txuas lus | Tuaj yeem / rs485 |
| Kev tiv thaiv roj teeb | Dhau-tam sim no / tshaj-voltage / luv Circuit Court / Under-voltage / dhau-kub |
| Ntawv pov thawj | CE, UN38.3, MSDS |
| Kev lav | 5 xyoo |
